The ferrite-to-austenite balance in duplex stainless steels dictates corrosion resistance, strength, and weldability. Here’s a data-driven breakdown of 2205 (30% ferrite) vs. 2507 (50% ferrite) microstructures, validated by etching contrast microscopy (ETC) and field performance.
1. Phase Balance & Chemistry
| Property | 2205 (S32205) | 2507 (S32750) |
|---|---|---|
| Ferrite (%) | 30–40% (Typical 35%) | 45–55% (Typical 50%) |
| Austenite (%) | 60–70% | 50–55% |
| Key Alloying | 22Cr-5Ni-3Mo-0.17N | 25Cr-7Ni-4Mo-0.28N |
| PREN | 34–38 | 42–45 |
Why It Matters:
-
Ferrite (BCC): Higher strength, better chloride SCC resistance.
-
Austenite (FCC): Superior toughness, ductility, and weldability.
2. ETC Metallography Analysis
(Kalling’s Reagent Etching – 1000X Magnification)
A. 2205 Duplex (30% Ferrite)
-
Structure:
-
Ferrite (Dark): Discontinuous islands in austenite matrix.
-
Austenite (Light): Lamellar bands (~5–10µm wide).
-
-
Weaknesses:
-
Sigma Phase Risk: Prolonged 600–900°C exposure → brittle intermetallics.
-
HAZ Ferrite Spike: Welding can push ferrite to 50–60%, reducing toughness.
-
B. 2507 Super Duplex (50% Ferrite)
-
Structure:
-
Ferrite (Dark): Nearly equal phase distribution (50/50).
-
Austenite (Light): Finer grains (~2–5µm) due to higher N content.
-
-
Advantages:
-
Sigma Resistance: Higher Mo/N delays precipitation.
-
Crack Arrest: Ferrite/austenite boundaries blunt cracks.
-
▶️ ETC Micrograph Comparison
(00:22 – 2205 vs. 2507 phase contrast | 01:15 – Sigma phase in 2205 HAZ)
3. Mechanical & Corrosion Performance
| Test | 2205 (30% Ferrite) | 2507 (50% Ferrite) |
|---|---|---|
| Yield Strength | 550 MPa | 620 MPa |
| Impact Toughness | 80J (-40°C) | 70J (-80°C) |
| CPT (ASTM G48) | 35°C | 50°C |
| CCT (ASTM G78) | 20°C | 35°C |
| H₂S SCC Threshold | 50 ppm | 10,000 ppm |
Key Takeaway: 2507’s 50% ferrite delivers 2X chloride resistance but requires stricter welding controls.
4. Welding Challenges & Fixes
2205 (30% Ferrite)
-
Risk: HAZ ferrite spikes → embrittlement.
-
Solution:
-
Filler: ER2209 (matches base metal).
-
Heat Input: 0.5–1.5 kJ/mm.
-
2507 (50% Ferrite)
-
Risk: Austenite depletion → H₂ cracking.
-
Solution:
-
Filler: ER2594 (9% Ni).
-
Interpass Temp: ≤100°C (vs. 150°C for 2205).
-
5. Field Data: Offshore Oil & Gas
| Application | 2205 Performance | 2507 Performance |
|---|---|---|
| Seawater Pipelines | 5–10 years (pitting) | 20+ years (no leaks) |
| Sour Gas Wellheads | Cracks at 200 ppm H₂S | Intact at 5% H₂S |

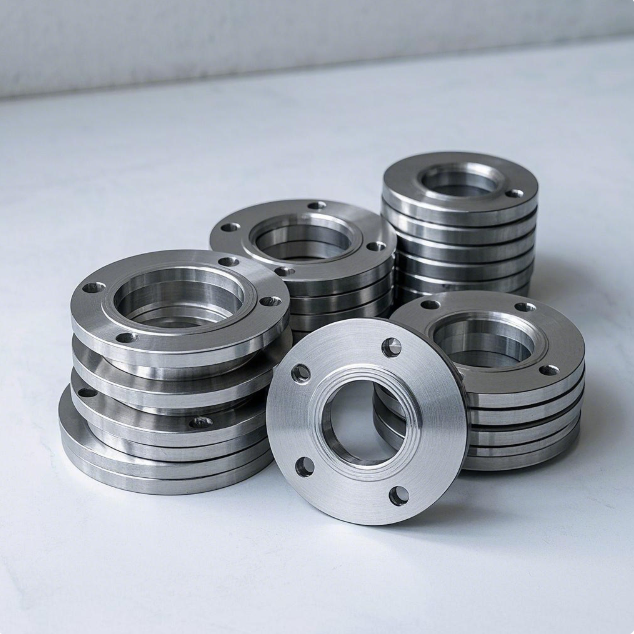

| Cost (DN300 Flange) | $2,800 | $4,500 |
Trade-Off: 2507 costs 60% more but eliminates replacements.
6. When to Choose Which
-
2205 (30% Ferrite):
-
Low-chloride, low-pressure (≤300LB).
-
Budget-sensitive projects.
-
-
2507 (50% Ferrite):
-
Seawater, high H₂S, or >600LB systems.
-
Lifecycle cost priority.
-
